MS600

Stable, Precise-MS600

MS600
Dental Desktop Scanner

  • ● 3.0 million pixels
  • ●  Double the planting benefits
  • ●  Upgrading without slowing down
MS600

Powerful Scanning Performance

The MS600 Dental Desktop Scanner is equipped with 2*3.0MP high-definition cameras, capturing every detail with astonishing clarity. Its wide scanning range effortlessly meets the user's need for an extra large scanning angle. Whether it's orthodontics, veneers or other restoration needs, it's up to task. With features like HD mode and virtual articulator transfer, it provides highly accurate data for CAD design, delivering a fast and precise user experience. It perfectly aligns with all your expectations for a convenient digital device!
Powerful Scanning Performance
  • High speed

    Scene Differentiation Fine Scanning Simple scanning On-demand scanning eliminates time wastage significantly speeds up workflow
    High speed
  • High precision

    Domestic and international double standard full dental arch scanning accuracy can be guaranteed <8um
    High precision
  • Unsplit mode scanning optimization

    The features of scanned objects are optimized by scientific algorithms. Adjust scan parameters to improve data quality. Improve the efficiency and accuracy of undivided mode scanning.
  • Supports multi-in-one scanning

    Supports simultaneous scanning of 1/4 maxillary and mandibular models and generation models.

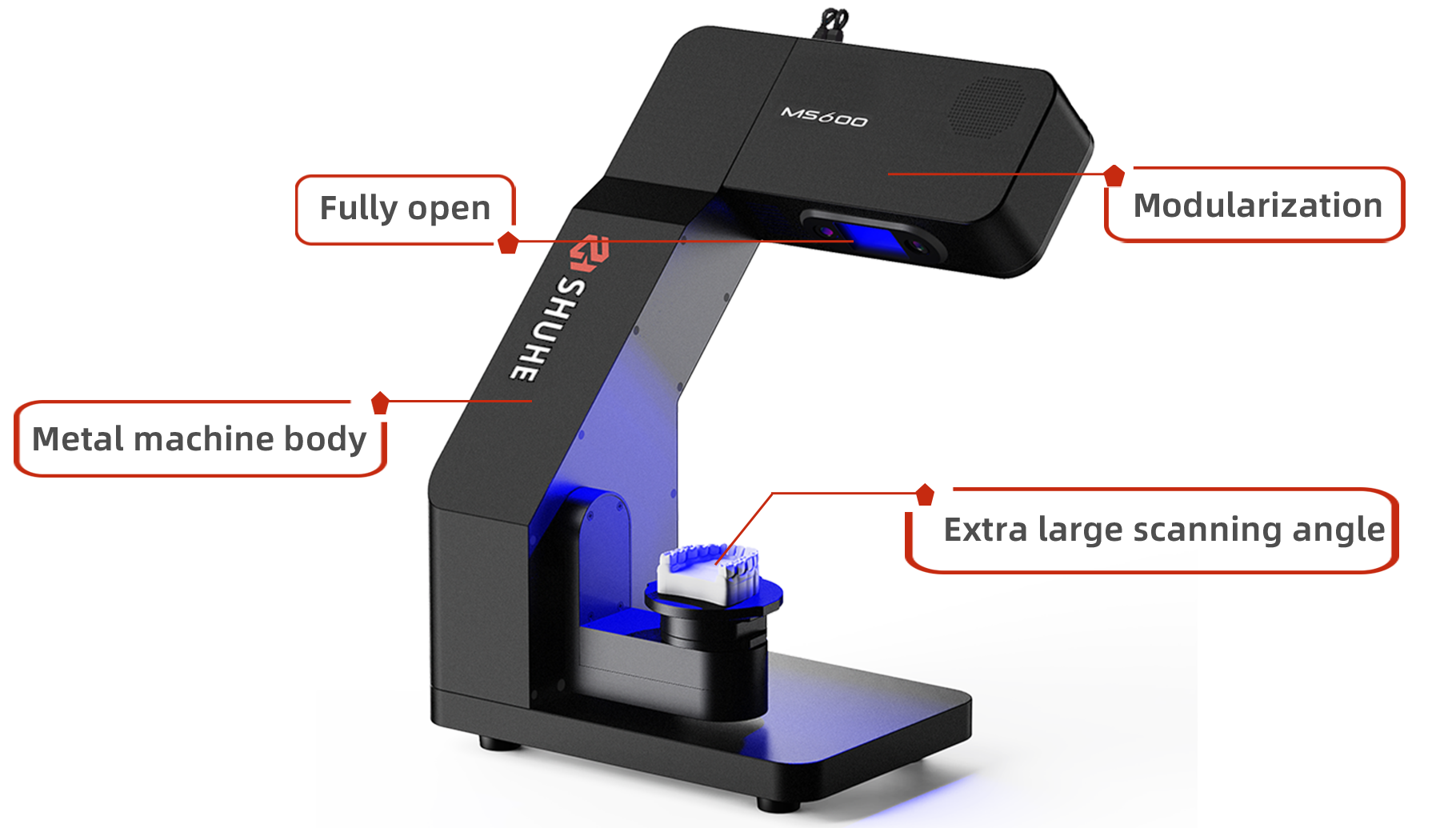

  • Modular design

    Easy to remove and replace, easy to maintain and upgrade. Improve its flexibility, maintainability and extensibility.
  • Unsegmented Scanning

    Multiple scanning in two steps

    No need to add-scan

    Saving time and effort

    Unsegmented Scanning
  • Segmented Scanning

    Two-step-less scanning

    Precise segmented scanning

    Prominent features


    Segmented Scanning
  • Double-sided Impression Scanning

    Supports one-time scanning of double-sided models

    No need for manual flipping

    Providing a better scanning experience

    Double-sided Impression Scanning
  • Texture scanning

    3 million pixel true color texture

    Details are clearly visible

    Texture scanning

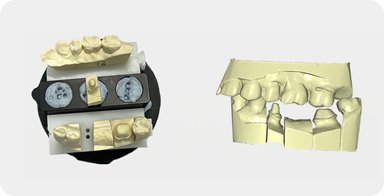

  • All-in-one scanning

    One-time scan of 1/4 model

    Reduce the operation steps and improve the work efficiency by 30%

    All-in-one scanning
  • Upgrading Without Slowing Down

    The processing factory specializes in researching high-speed scanners to empower digital production lines.
    Upgrading Without Slowing Down

Technical Specifications

√ include   x exclude
Model MS600
Camera Resolution 2x3.0MP
Accuracy 5μm
Scan range 140x115x80
Size 305mmx328mmx426mm
Weight 9KG
Data Interface USB 3.0
Power supply DC 24V
Output FormatSTL, OBJ, PLY

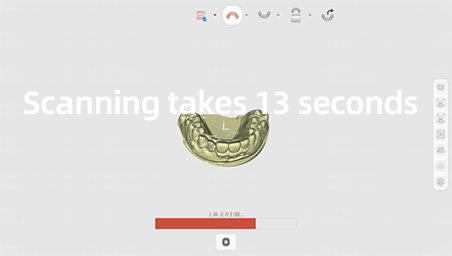

Full arch scan speed 13s
Full arch impression scan speed 27s
True Color Texture
Articulator Scanning
Orthodontic Scanning
Flexible Scanning
Replica Denture
* The above data is sourced from an internal testing environment, and there may be errors in actual use.
